Smart Spider Pro

Efficient Performance for Professional Rope Access

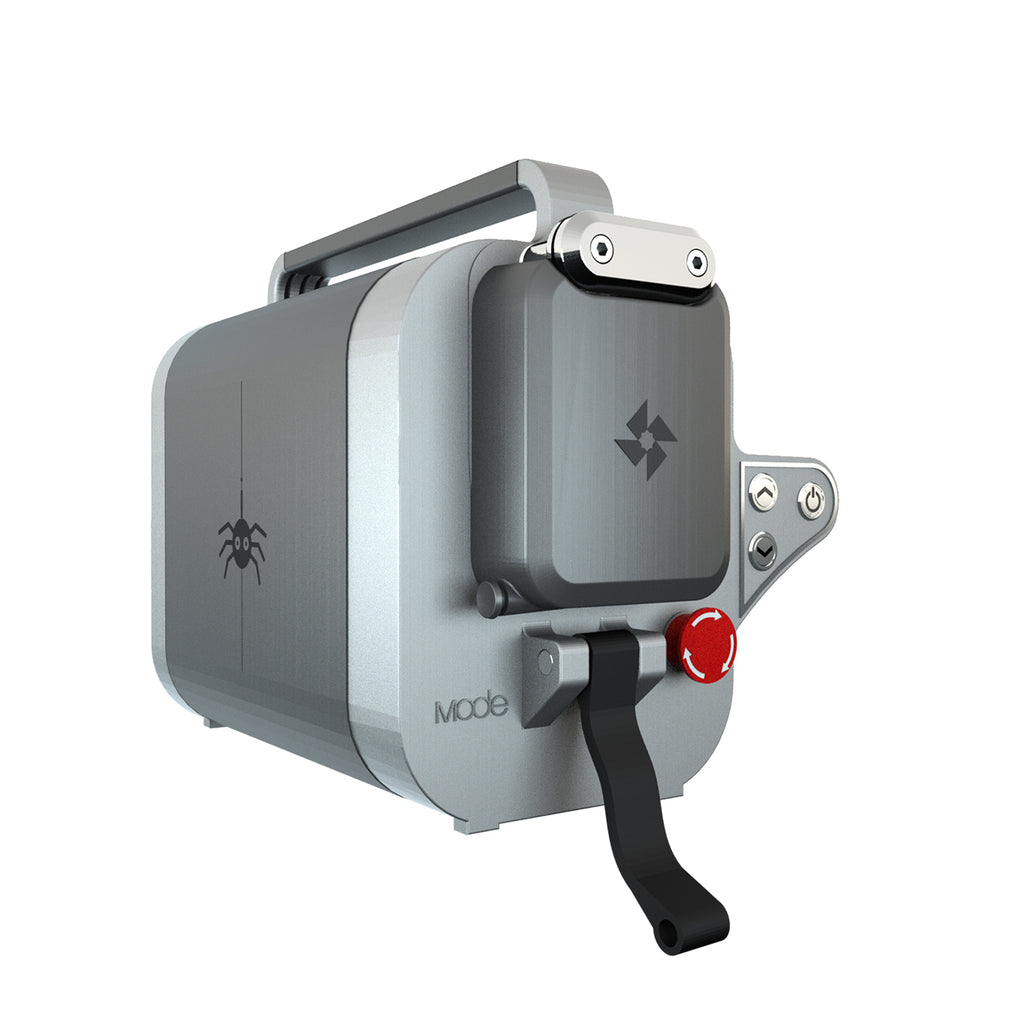

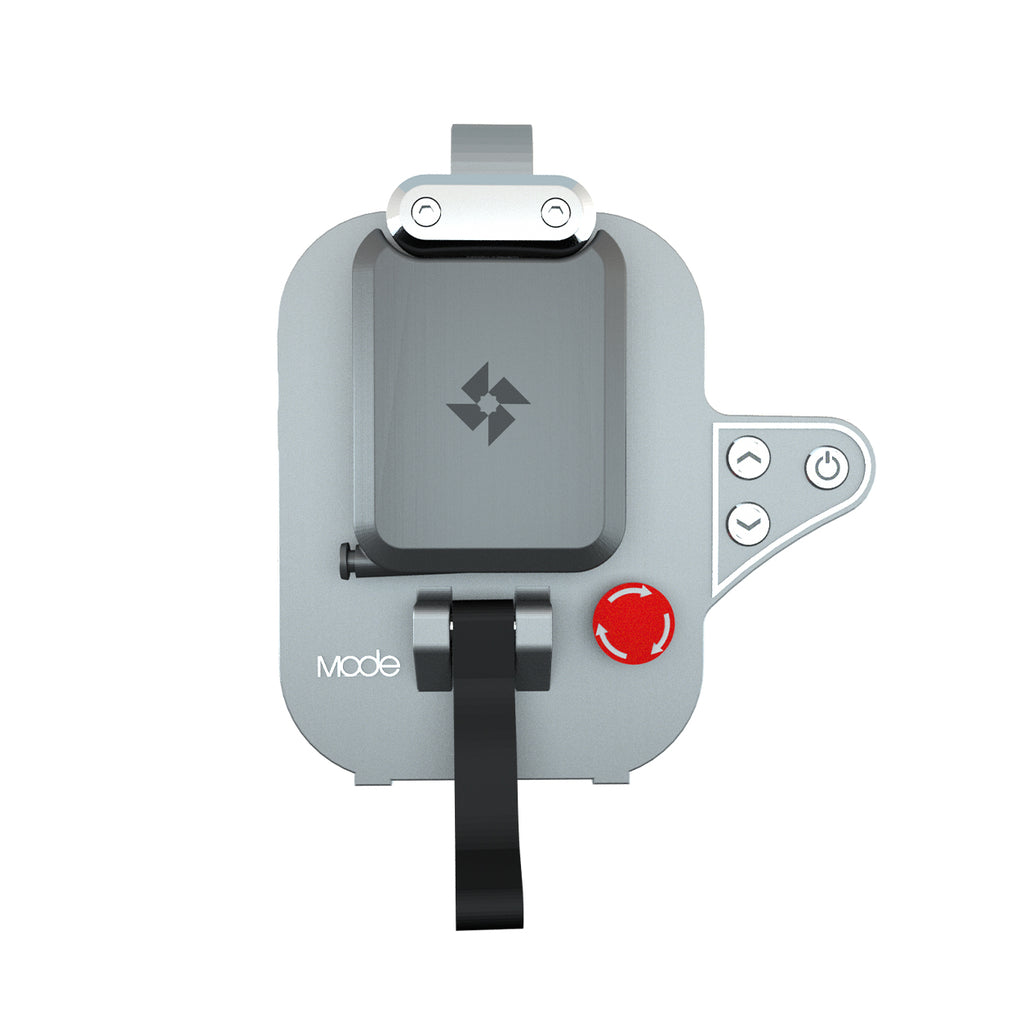

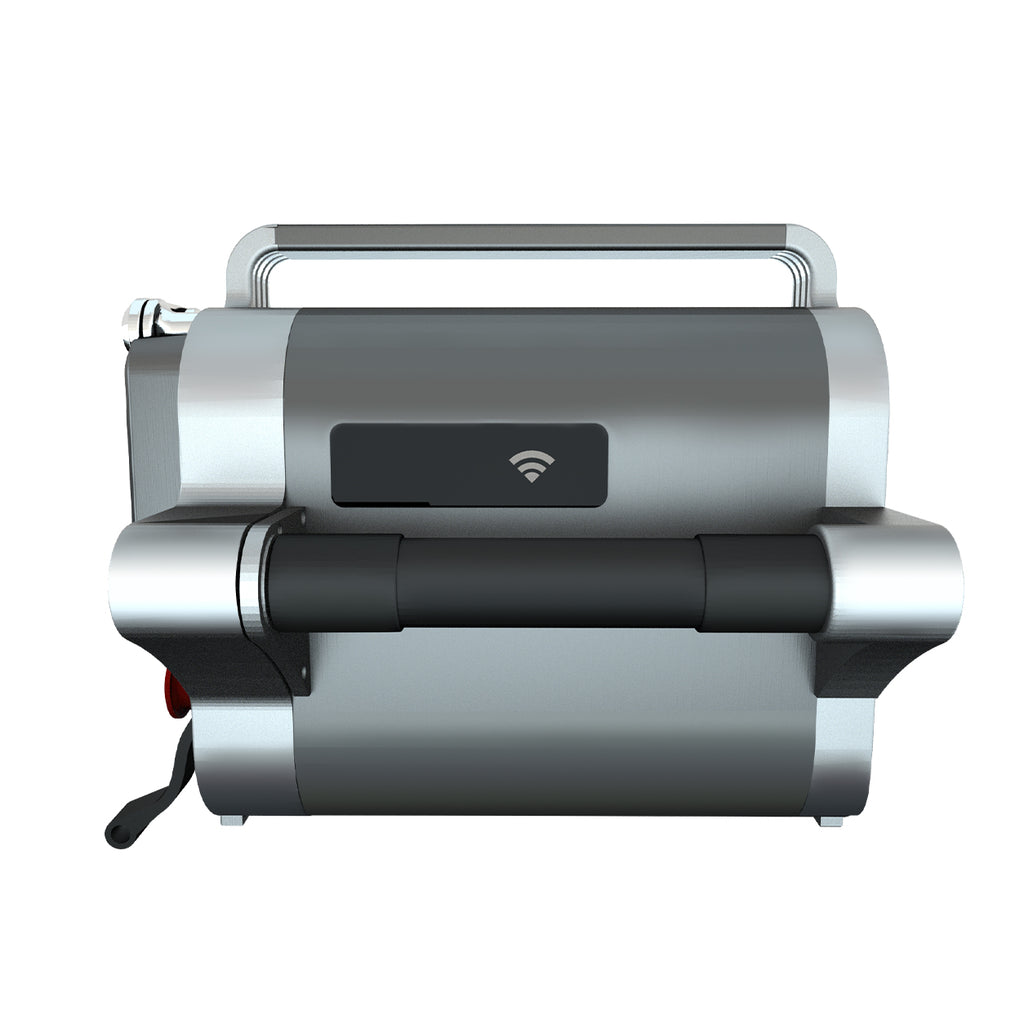

The MODE Smart Spider Pro is a battery-powered rope ascender designed for efficient vertical movement in professional work-at-height environments. Engineered for reliability, it delivers smooth ascent and controlled descent with stable speed performance.

Power & Drive System

The Smart Spider Pro features a high-efficiency motor paired with a precision gearbox, providing consistent torque and smooth operation across demanding tasks.

• Stepless speed control
• Stable ascent and descent performance
• Optimized for continuous professional use

Battery & Energy System

Equipped with an integrated lithium-ion battery system designed for dependable daily operation.

• 36V / 5000 mAh lithium-ion battery
• Multi-level battery protection
• Over-current and short-circuit protection

Safety Features

Designed to meet professional safety requirements for rope access operations.

• Emergency stop system
• Emergency descent function
• Battery monitoring and protection
• Compatible with independent safety lines

Core Specifications

• Rated Load: up to 200 kg
• Motor Power: 1000 W permanent magnet motor
• Speed Control: Stepless (up to 22 m/min ascent, 30 m/min descent)

Battery Performance

• Running Distance: up to 360 m (120 kg load) per battery
• Charging Time: approx. 2.5 hours

Design & Operation

• Weight: approx. 14.3 kg (including battery)
• Operating Temperature: -20°C to +50°C
• Rope Compatibility: EN 1891 Type A (10–11 mm)

Applications

• Rope access & work at height
• Facade and window cleaning
• Telecommunications maintenance
• Industrial maintenance
• Bridge inspection
• Stage rigging & event structures
• Rescue and emergency operations

Certification

The Smart Spider Pro is certified as PPE Category III under EU Regulation 2016/425 and complies with multiple European safety standards for work-at-height and rescue operations.
